Sorting equipment

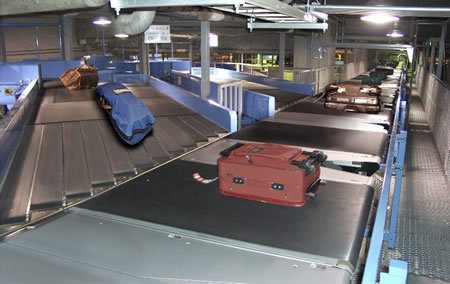

Cross Belt Sorter(for large-sized baggage)BHS System for large-sized baggage
Liner motor driving results in handling large cases smoothly and speedily.
Features
- Suitable for various kinds of cases
Variaous kinds of cases such as golf bags, suitecases, and so on.
- Less maintenance requirements
Liner motor drives together with non contact result in good maintenability.
- Low noise design
Liner motor drives result in very low noise.
Specifications
| Sorting method | Loop-typle cross belt sorter |
|---|---|
| Sorting capacity | Max. 4,000 pieces/h |
| Cart dimensions | 1100（W）×1300（L）mm |
| Cart belt width | 1000mm |
| Cart Standard Speed | 120m/min |
| Cart drive mode | Liner motor |
| Transported product size |
MAX. 600（W）×1000（L）×700（H）mm MIN. 200（W）×300（L）×50（H）mm |
| Transported product weight | 2～40kg/piece |
*Please consult with Okura if handled items are different from what is specified by us.
