Uni Tatecon®
TC

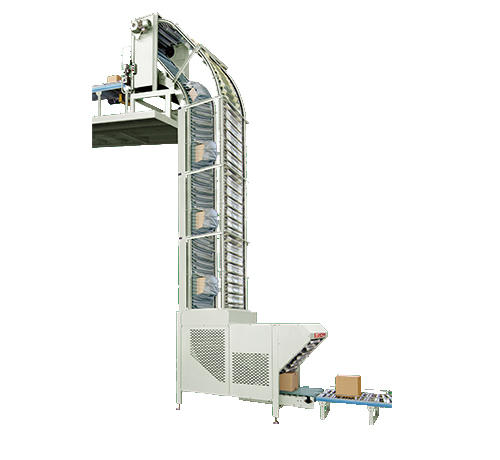

Vertical conveyors

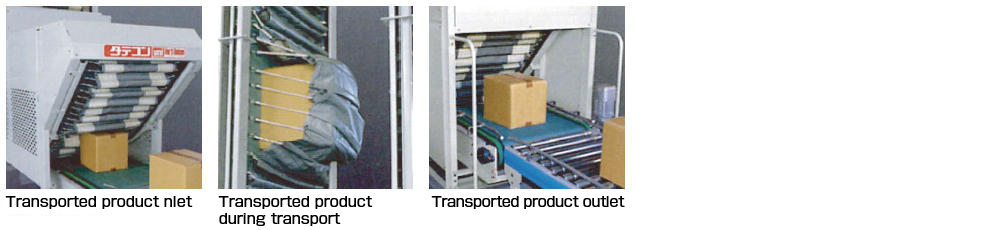

Vertically transferring handled products of various kinds being clamped by both the hard belt and the soft belt.
Specifications
| Model and specifications | TC-400Ⅱ | TC-500Ⅱ | TC-650Ⅱ | |
|---|---|---|---|---|
| BW Belt width (mm) | Soft belt | 550 | 650 | 750 |
| Hard belt | 650 | 750 | 850 | |
| Maximum transported product dimensions (mm) (WxLxH) |
400×500×400 | 500×700×435 | 650×900×535 | |
| 435×700×500 | 545×900×650 | |||
| Lifting height | MAX. 15,000 | |||
| Load | 50kg/items | |||
| Transfer capacity | 4,500 (items/hour) | |||
| Speed | MAX. 60m/min | |||
| Motor output | Soft side | 0.75kW 1.5kW 2.2kW | ||
| Hard side | 0.4kW 0.75kW 1.5kW | |||
| Power supply | 200V AC (3-phase) | |||
- Transfer capacity figure is an estimate based on maximum speed operation with a transfer pitch of 800 mm.
- High efficiency motorsr(IE3) are used for motor outputs, 0.75kW, 1.5kW and 2.2kW

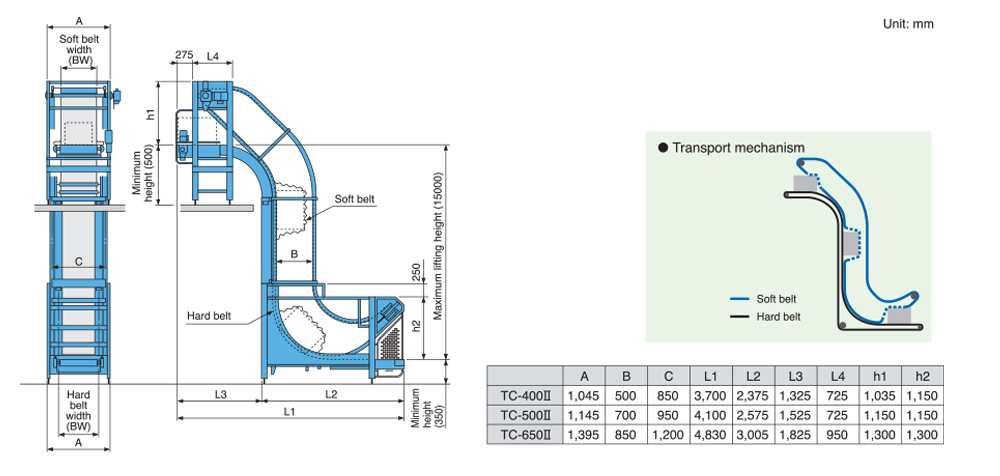

Standard drawings
