Perfect Veyor®
PV (Steel-made)
Vertical conveyors

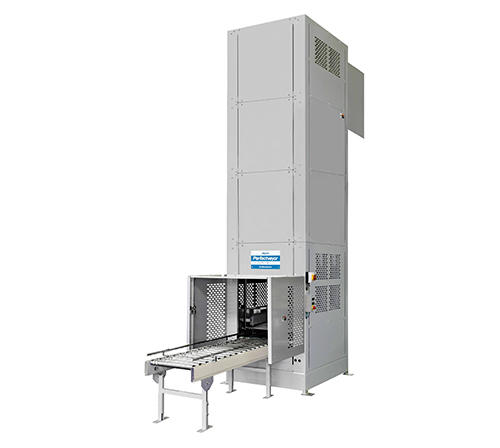

A space-saving vertical transport system.
These systems move products continuously and reliably between floors while keeping them horizontally oriented.
Specifications
Basic specifications for steel frame type (PVZ5/PVC5, PVZ6/PVC6)
| Model and specifications | Load (kg/slat) | Maximum transported product dimensions (mm) (WxLxH) | Transfer capacity (items/hour) | Slat dimensions (mm) (WxL) | System dimensions (mm) (W1xL1) | Opening dimensions (mm) (W2xL2) | ||
|---|---|---|---|---|---|---|---|---|
| Z model | C model | |||||||
| PVZ5（PVC5）-5 -5 PVZ5（PVC5）-5 -7 PVZ5（PVC5）-5 -9 |
70 60 40 |
400×300×600 400×500×600 400×700×600 |
870 760 650 |
560 480 400 |
500×500 500×700 500×900 |
865×1,070 865×1,260 865×1,450 |
1,165×1,370 1,165×1,560 1,165×1,750 |
|
| PVZ5（PVC5）-7 -5 PVZ5（PVC5）-7 -7 PVZ5（PVC5）-7 -9 |
65 55 40 |
600×300×600 600×500×600 600×700×600 |
870 760 650 |
560 480 400 |
700×500 700×700 700×900 |
1,065×1,070 1,065×1,260 1,065×1,450 |
1,365×1,370 1,365×1,560 1,365×1,750 |
|
| PVZ5（PVC5）-9 -5 PVZ5（PVC5）-9 -7 PVZ5（PVC5）-9 -9 |
60 50 40 |
800×300×600 800×500×600 800×700×600 |
870 760 650 |
560 480 400 |
900×500 900×700 900×900 |
1,265×1,070 1,265×1,260 1,265×1,450 |
1,565×1,370 1,565×1,560 1,565×1,750 |
|
| PVZ6（PVC6）-7 -7 PVZ6（PVC6）-7 -10 PVZ6（PVC6）-7 -13 |
100 80 60 |
600× 500×800 600× 800×800 600×1,100×800 |
670 560 460 |
470 370 280 |
700× 700 700×1,000 700×1,300 |
1,100×1,340 1,100×1,645 1,100×1,950 |
1,400×1,580 1,400×1,945 1,400×2,250 |
|
| PVZ6（PVC6）-10 -10 PVZ6（PVC6）-10 -13 |
70 60 |
900× 800×800 900×1,100×800 |
560 460 |
370 280 |
1,000×1,000 1,000×1,300 |
1,400×1,645 1,400×1,950 |
1,700×1,945 1,700×2,250 |
|
| PVZ6（PVC6）-13-13 | 50 | 1,100×1,100×800 | 460 | 280 | 1,300×1300 | 1,700×1,950 | 2,000×2,250 | |
| Common specifications | Lifting height |
PVZ5 (PVC5): Max. 8m PVZ6 (PVC6): Max.12 m | ||||||
| Chain | PVZ5（PVC5）：#50 PVZ6（PVC6）：#60 | |||||||
| Vertical speed |
15/18 20/24 25/30 m/min(50/60Hz) | |||||||
| Vertical motor output |
0.75 kW, 1.5 kW, 2.2 kW (with brake) | |||||||
- Transfer capacity figures are estimates based on standard speeds.
- High efficiency motorsr(IE3) are used for motor outputs, 0.75kW, 1.5kW and 2.2kW

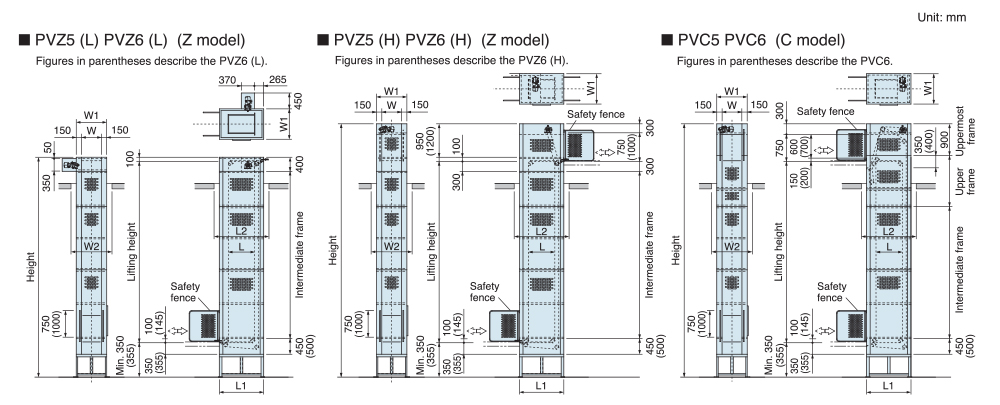

Standard drawings

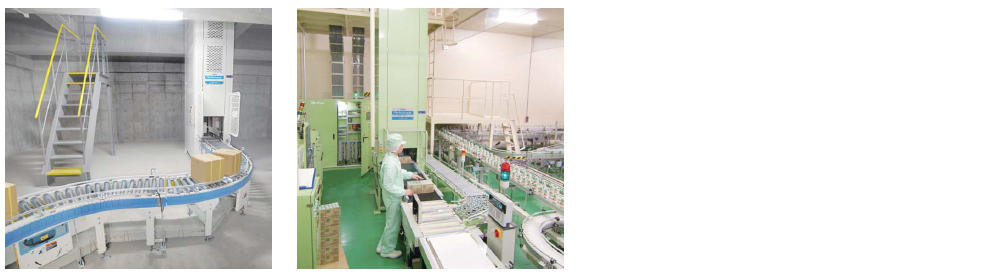

Applications
