Turn ConveyorPalletizer Peripheral Equipment
Features

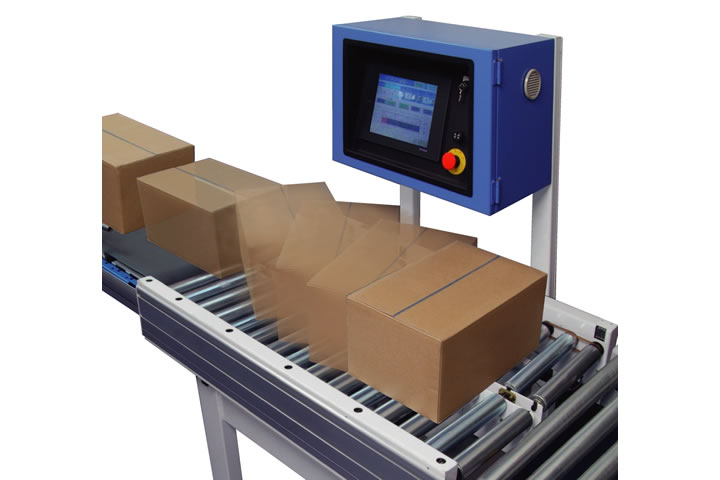

- Turning gently and speedily
Turning cases by 90 degrees or 180 degrees without any external force to cases
- High accuracy and high capacity
High capacity at 80 cases per minute
- Easy operation
Easy operation using a tough panel
- Suitable to change transporting directions to a upper-stream process
- Suitable to change transporting direction to a upper-stream process

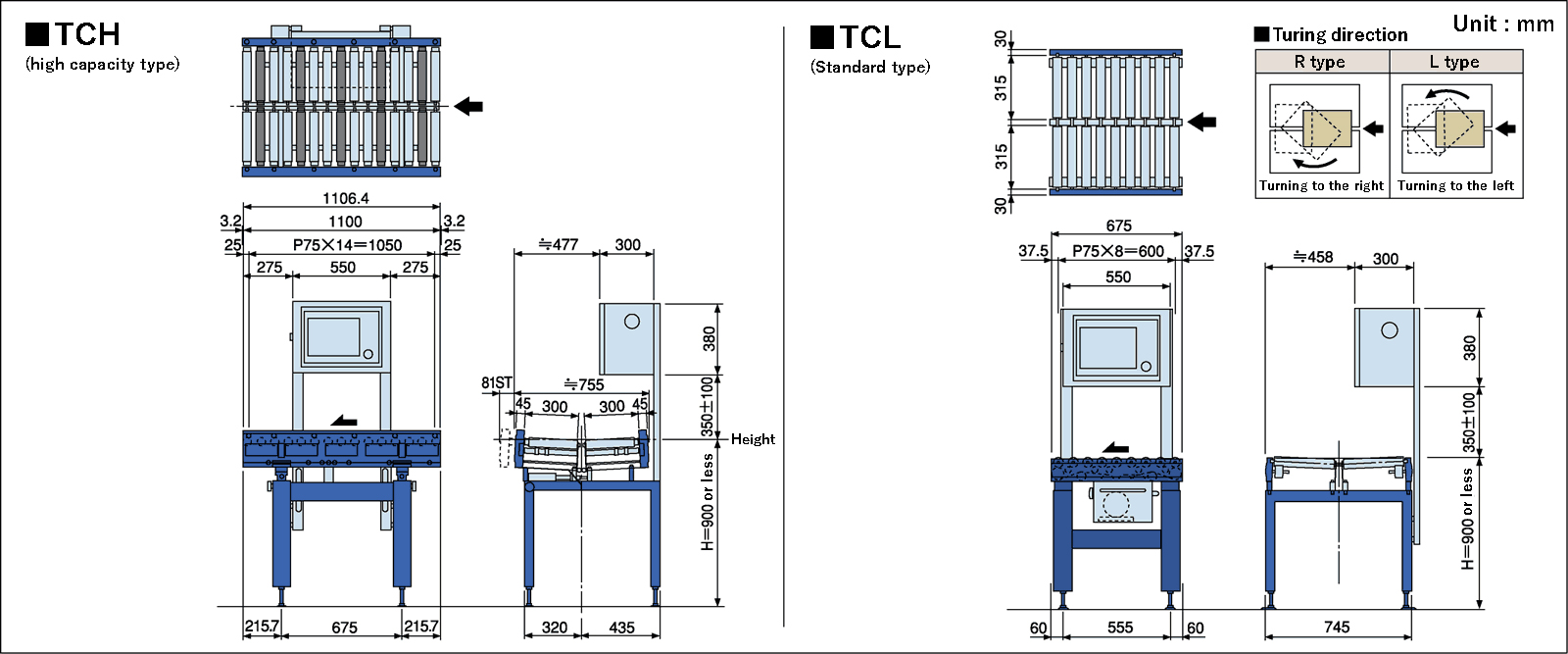

Specifications
| Model | TCH(high capacity type) | TCL(Standard type) |
|---|---|---|
| Width (mm) | MAX.850 | MAX.800 |
| Length (mm) | 1106.5 | 675 |
| Height (mm) | MIN.600 | MIN.550 |
| Transported product weight | MAX.30kg | |
| Horizontally transferring speed | 〜55m/min | |
| Turning speed | High speed 105m/min Low speed 8m/min | |
| Turning direction | Selectable ①Turn to the right by 90 degrees ②Turn to the left by 90 degrees ③Turn 180 degress ④Go straight *TCL can turn to one direction only. |
|
| Transported product size (mm) | 180〜285W×270〜430L | |
| Capacity | Ex）80 cases/min for 400L×270W×13kg (Reference only) |
Ex）40 cases/min for 400L×270W×13kg (Reference only) |
| Drive method | DC24V V Motorized Roller with V pully 10 pieces controlled by one PCB board | Flat belt-driven 0.2KW×2(inverter controlled) |
| Roller | φ48.6 | φ48.6 |
| Roller pitch | 75 | |
| Power supply | AC200V（Single phase） | AC200V（two phase） |
- Convey cases alongside the conveyor center line.
- Gaps between cases are required.
- Cases with unbalanced weight may not be handled properly.
