Palletizing equipment
Gantry PalletizerLow to medium capacity Palletizer
The palletizer requires a small foot space.
Pattern changes can be done easily.
Features
- As small a foot space as possible can be designed.

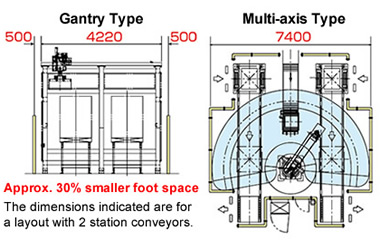

It is a rectangular type whic requires as small a foot space as possible so that a Gantry can be installed in a restricted space or close to a wall. 30% smaller foot space is needed compared with a multi-axes robot.
- Quick teaching
Okura Application Software, "OXPA-QM Series", is very helpful to quick Teaching.
- Dedicated end-effectors (Hands)
The end-effector is purposely designed to pick up cases or bags quickly and surely.
Specifications
| Handled products | A-type cardboard cases 138-250W×240-270L 27 cases×17layers |
|---|---|
| Maximum capacity | 8 cycles/min |
| Maximum palletizing height (mm) | 1,600mm (including a 140mm high pallet) |
| Maximum palletizing load | Max. 500㎏ (including a 50kg pallet) |
| Pallet dimensions（mm） | 1,100(W)×1,000(L)×144(H) |
*Processing capacity varies with factors such as palletizing pattern, number of stacking levels, and properties of the products being palletized.
