Palletizing equipment

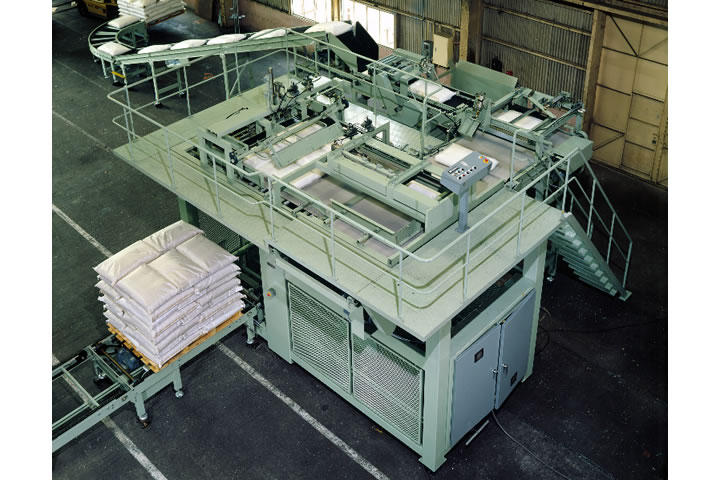

667Bag Palletizer
This reised palletizer designed exclusively for use with bagged products.
Features
- Raised palletizer
- Carriage (stacking unit) belt type
- Processing capacity of up to 30 bags per minute
Specifications
| Transported products | Craft bags, polypropylene bags, polycanvas bags, etc. | |
|---|---|---|
| Product size（mm） | Min. 500(L)×350(W)×70(H) Max. 800(L)×500(W)×175(H) |
|
| Processing capacity | 30 bags/min. | |
| Palletizing height（mm） | 1,650 (including pallet dimensions) |
|
| Palletizing weight | 1,500 kg/pallet (including pallet weight) |
|
| Pallet size（mm） | Max. 1,250(L)×1,500(W)×150(H) | |
*Processing capacity varies with factors such as palletizing pattern, number of stacking levels, and properties of the products being palletized.
