Chain-driven straight type
QCS
Chain-driven straight type
Reliable, stable transport.
Chain-driven powerful roller conveyor
Specifications
*Colored text is semi-standard.
| Model | QCS | |||
|---|---|---|---|---|
| Drive system | Forced drive | |||
| RW Roller width (mm) | 305 | 390 | 490 | 620 |
| RW1 Effective roller width (mm) | 283 | 368 | 468 | 598 |
| FW Inner frame width(mm) | 315 | 400 | 500 | 630 |
| W External frame width (mm) | 375 | 460 | 560 | 690 |
| Roller pitch (mm) | 40、80 | |||
| L Length (mm) | 840≦L≦8,000 | |||
| Minimum height (mm) | 260 | |||
| Frame (mm) | ［ 60×30×t2.3 | |||
| Carrier rollers | φ31.8 with plastic sprockets (#35 x 9T) With steel sprocket | |||
| Chain | #35 roller chain | |||
| Speed (50/60 Hz) *1 | 10/12 15/18 20/24m/min | |||
| Motor output | 0.1kW 0.2kW 0.4kW | |||
| Power supply | 200V AC (3-phase) | |||
- Speed figures above represent nominal speeds. For more information, please contact Okura's Sales Department.
- Peridodical lubrication is required as the standard plastic sprokets do not come with bearings. Standard plastic sprokets and steel ones are available with bearings at option.
- We can manufacture systems with non-standard specifications. Please contact Okura for more information.

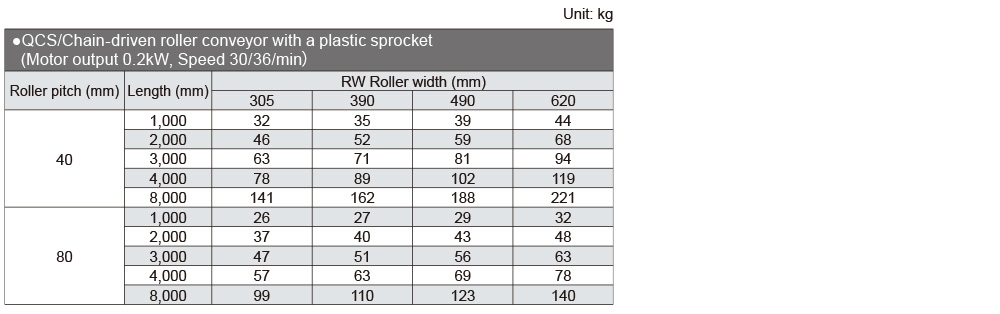

Weight

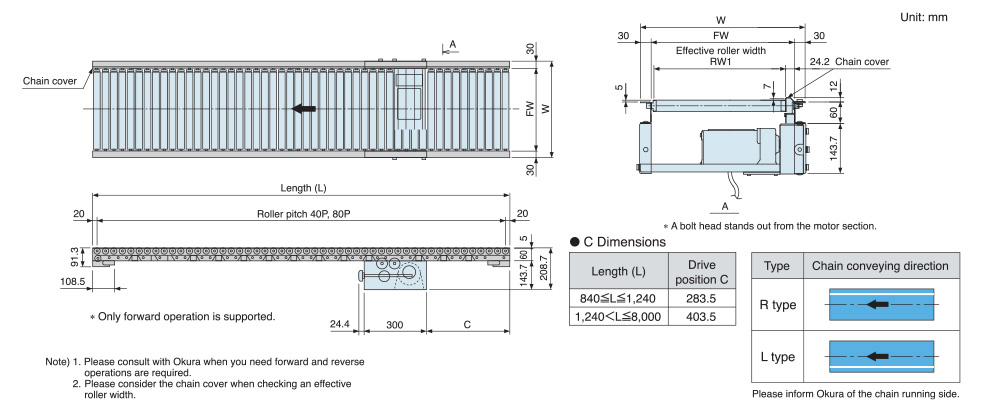

Standard drawings
