Belt conveyors
QBL
Horizontal belt coveyors (carrier roller type)
For reliable horizontal transport.
These belt conveyors can move a variety of products reliably, including cases, pouches, and unstable items.
Specifications
| Model | QBL(Carrier roller type) | |||
|---|---|---|---|---|
| BW Belt width (mm) | 265 | 350 | 450 | 580 |
| FW Inner frame width(mm) | 315 | 400 | 500 | 630 |
| W External frame width(mm) | 375 | 460 | 560 | 690 |
| Carrier roller pitch (mm) | 80 | |||
| L Length (mm) | 680≦L≦10,200 | |||
| Minimum height (mm) | 130 | |||
| Frame (mm) | ［ 60×30×t2.3 | |||
| Belt | Plastic belt (1-ply), Endless-type belt connections | |||
| Speed (50/60 Hz) *1 | 15/18 20/24 30/36 m/min | |||
| Motor output | 90W | |||
| Power supply | 200V AC (3-phase) | |||
- Speed figures above represent nominal speeds. For more information, please contact Okura's Sales Department.
- Please choose this model when the conveyor can be longer because of an end take-up pulley.
- We can manufacture systems with non-standard specifications. Please contact Okura for more information.

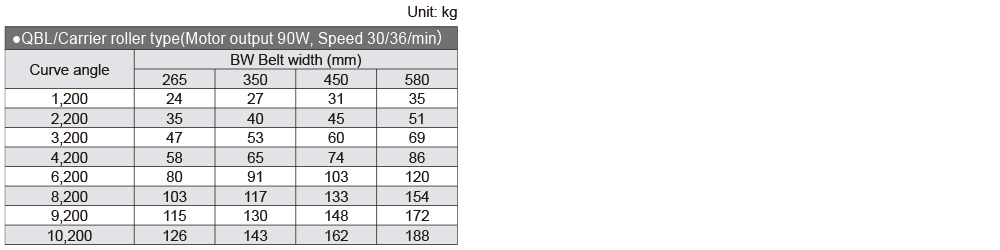

Weight

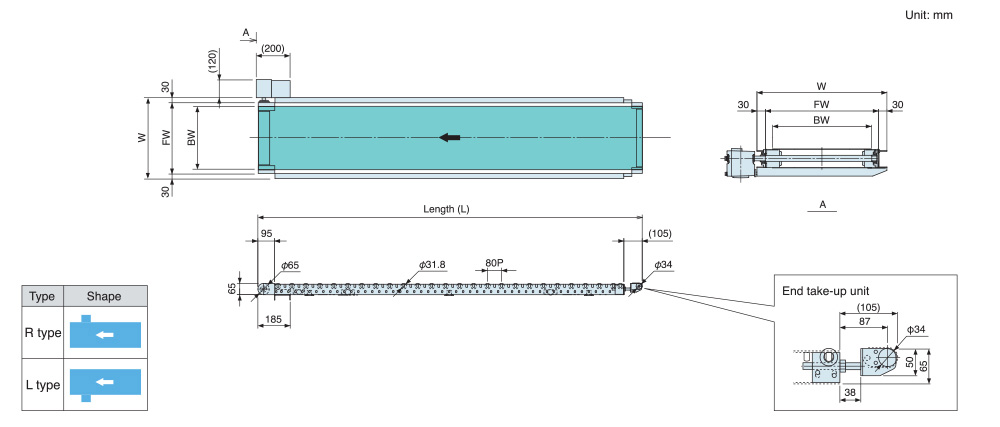

Standard drawings
