Belt-driven roller conveyors

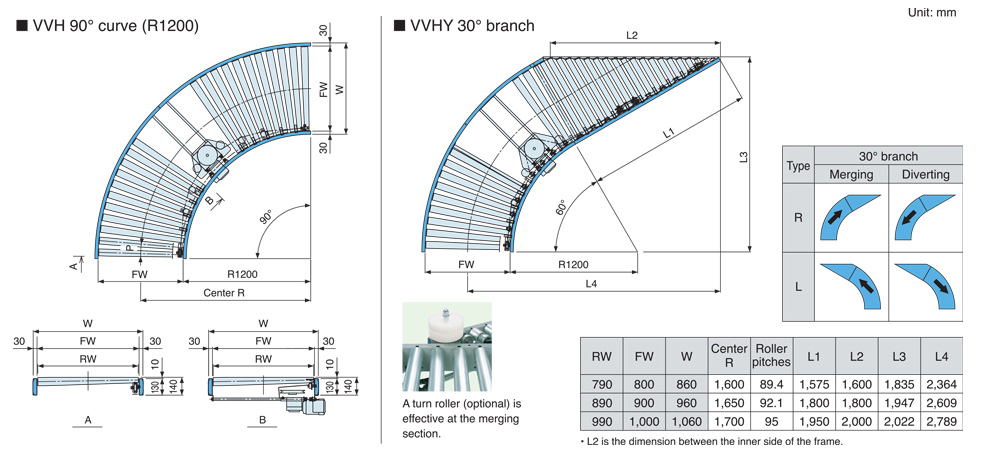

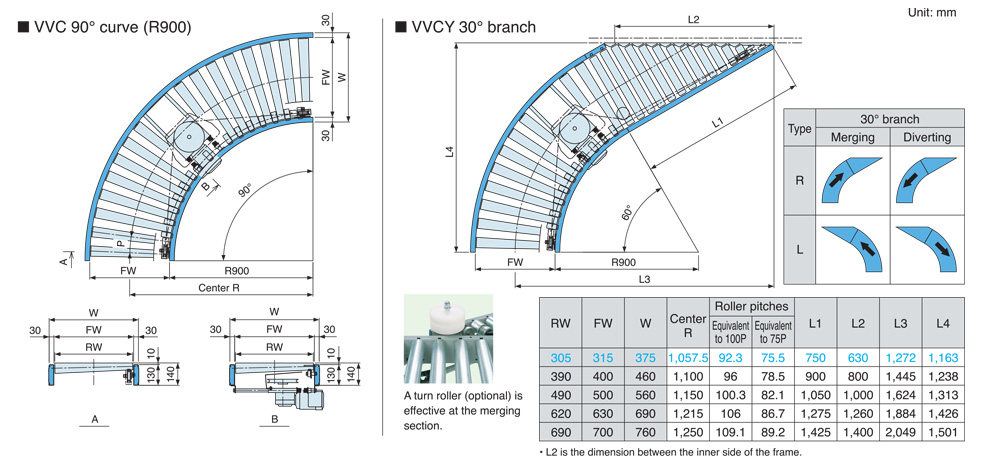

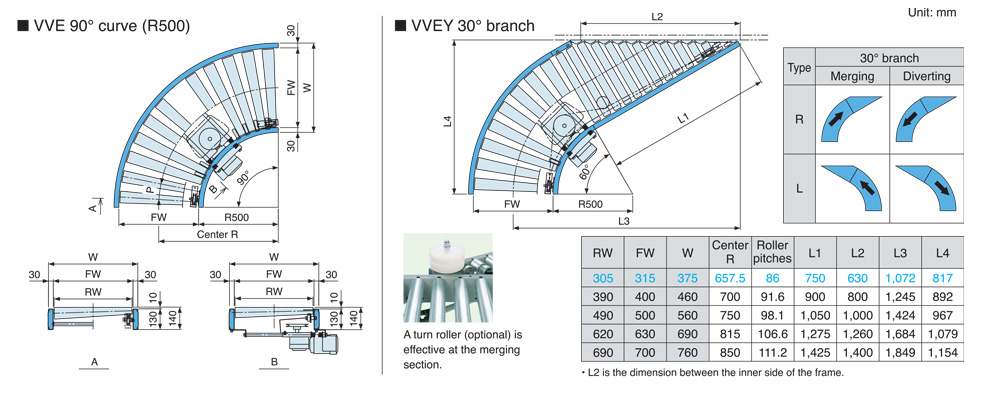

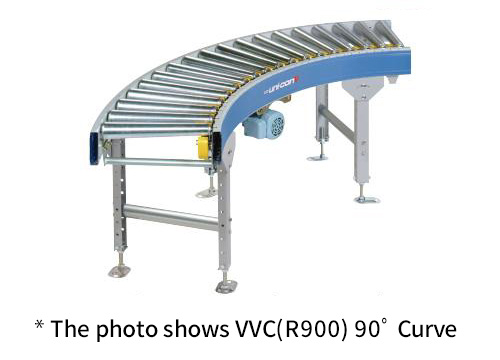

VVC・VVE・VVH（90ﾟ Curve）／VVCY・VVEY・VVHY（30ﾟ Branch）
V-belt-driven long-length type
V belt driven roller conveyor. Three types, R900, R500 and R1200 are available.
Specifications
*Colored text is semi-standard.
| Model | VVC（R900・90° Curve） VVCY（30° Branch） VVE（R500・90° Curve） VVEY（30° Branch） VVH（R1200・90° Curve） VVHY（30° Branch） |
|||||||
|---|---|---|---|---|---|---|---|---|
| Inner radius (mm) | VVC・VVCY：900／VVE・VVEY：500 | VVH・VVHY：1200 | ||||||
| RW Roller width (mm) | 305 | 390 | 490 | 620 | 690 | 790 | 890 | 990 |
| FW Inner frame width(mm) | 315 | 400 | 500 | 630 | 700 | 800 | 900 | 1,000 |
| W External frame width(mm) | 375 | 460 | 560 | 690 | 760 | 860 | 960 | 1,060 |
| Roller pitch (mm) | VVC：Equivalent to 100 or 75 ／ VVE：Equivalent to 75 |
Equivalent to 75 | ||||||
| Curve angle | VVC、VVE、VVH：90°、90°+ Straight／VVCY、VVEY、VVHY：30° Branch | |||||||
| Minimum height (mm) | 320 | |||||||
| Frame (mm) |  130×30×11.5×t2.3 |
|||||||
| Carrier rollers | Tapered roller with groove diameter 42.7mm | |||||||
| Belt | V-belt | |||||||
| Speed (50/60 Hz) *1 | 15/18 20/24 30/36 m/min | |||||||
| Motor output | 0.2kW | |||||||
| Power supply | 200V AC (3-phase) | |||||||
- Speed figures represent nominal speeds. For more information, please contact Okura's Sales Department.
- We can manufacture systems with non-standard specifications. Please contact Okura for more information.
Standard drawings
Restrictions on handled products(reference only)

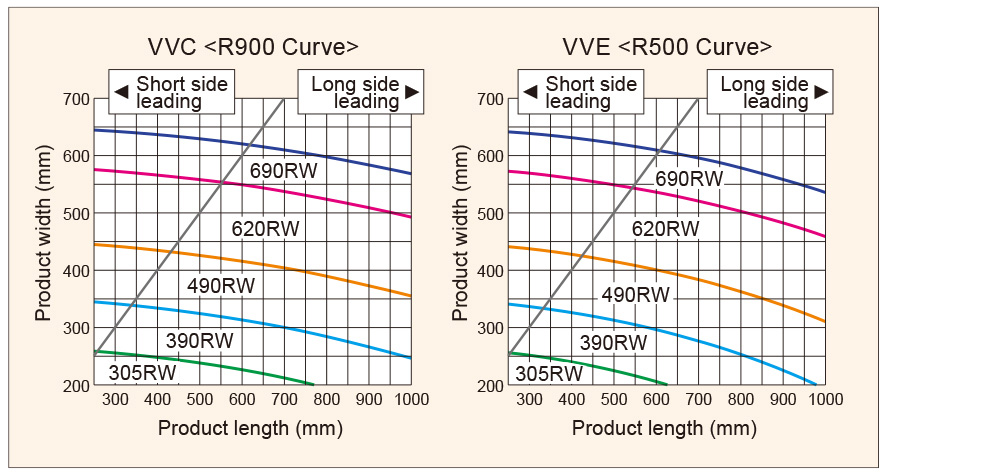

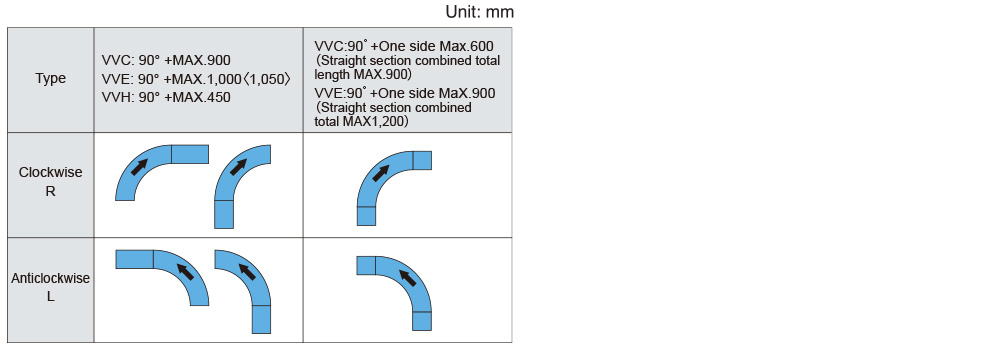

VVC、VVE、VVH （Curve+Straight） Maximum length Straight section
- Lengths in parentheses apply to units with a 75 mm pitch.
- The length of the conveyor is limited because of V belts. Please consult with Okura for details.

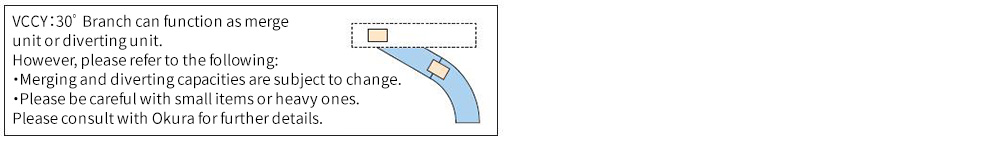

About merging and diverting of VVCY,VVEY,VVHY
