Belt-driven roller conveyors
VHL (Belt-driven roller conveyor Long type)
Belt-driven roller conveyors
30mm wide flat belt type. Up to 12m long can be made.
Specifications
*Colored text is semi-standard.
| Model | VHL(Belt-driven roller conveyor Long type) | |||||||
|---|---|---|---|---|---|---|---|---|
| RW Roller width (mm) | 305 | 390 | 490 | 620 | 690 | 790 | 890 | 990 |
| FW Inner frame width(mm) | 315 | 400 | 500 | 630 | 700 | 800 | 900 | 1,000 |
| W External frame width(mm) | 375 | 460 | 560 | 690 | 760 | 860 | 960 | 1,060 |
| Roller pitch (mm) | 100、75 | |||||||
| L Length (mm) | 6,000≦L≦12,000 | |||||||
| Minimum height (mm) | 350 | |||||||
| Frame (mm) |  130×30×11.5×t2.3 |
|||||||
| Carrier rollers | φ48.6 | |||||||
| Belt | 30 mm wide flat belt | |||||||
| Speed (50/60 Hz) *1 | 0.2kW：15/18 m/min ／ 0.4kW：20/24 30/36 m/min | |||||||
| Motor output | 0.2kW 0.4kW | |||||||
| Power supply | 200V AC (3-phase) | |||||||
- Speed figures represent nominal speeds. For more information, please contact Okura's Sales Department.
- We can manufacture systems with non-standard specifications. Please contact Okura for more information.

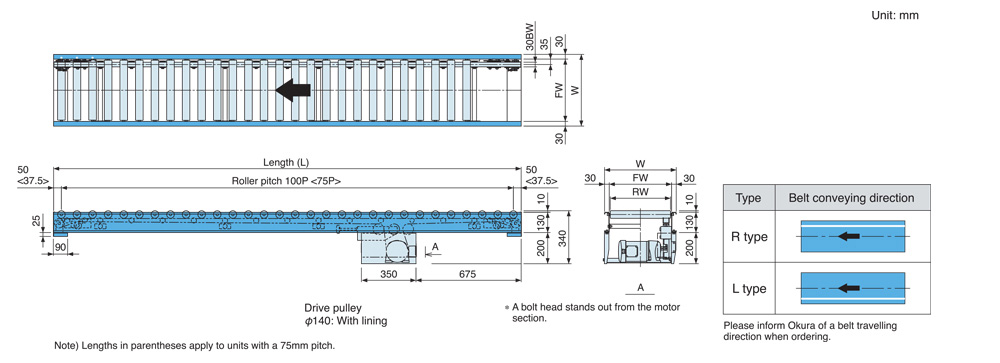

Standard drawings
