Chain-driven roller conveyors
VCA
Chain-driven accumulation type
Powerful conveyor for accumulation using the chains to drive the rollers
Specifications
*Colored text is semi-standard.
| Model | VCA | ||||
|---|---|---|---|---|---|
| Drive system | Friction drive | ||||
| RW Roller width (mm) | 305 | 390 | 490 | 620 | 690 |
| RW1 Effective roller width(mm) | 237 | 322 | 422 | 552 | 622 |
| FW Inner frame width(mm) | 315 | 400 | 500 | 630 | 700 |
| W External frame width(mm) | 375 | 460 | 560 | 690 | 760 |
| Roller pitch (mm) | 100、75 | ||||
| L Length (mm) | 1,000 (75 pitch: 1,050) to 9,000 | ||||
| Minimum height (mm) | 400 | ||||
| Frame (mm) |  130×30×11.5×t2.3 |
||||
| Carrier rollers | φ48.6, with plastic sprocket (#40 x 8T) | ||||
| Roller pitch (mm) | #40 roller chain | ||||
| Speed (50/60 Hz) *1 | 0.2kW・0.4kW：15/18 20/24 30/36 m/min ／ 0.75kW：30/36 m/min | ||||
| Motor output *2 | 0.2kW 0.4kW 0.75kW | ||||
| Power supply | 200V AC (3-phase) | ||||
- Speed figures represent nominal speeds. For more information, please contact Okura's Sales Department.
- Premium efficiency motors are adapted for 0.75kW.
- Lubrication is required regularily because the sproket has no bearings.
- We can manufacture systems with non-standard specifications. Please contact Okura for more information.

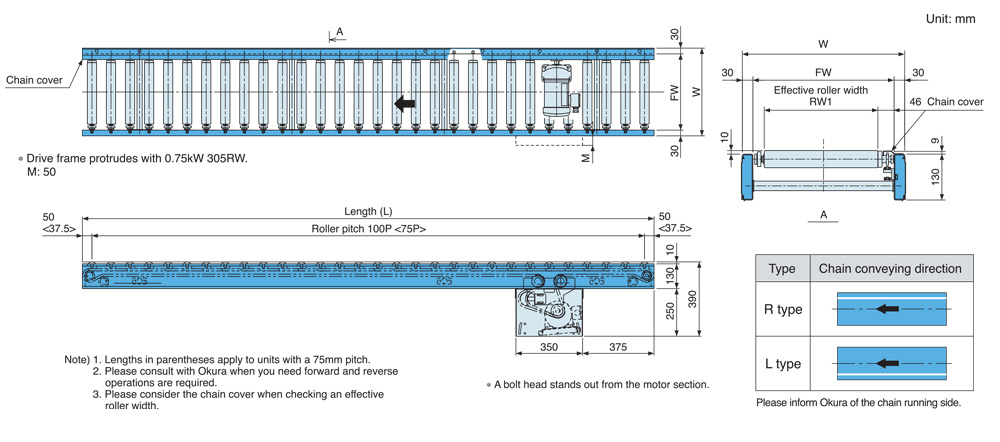

Standard drawings
