Belt conveyors

VBK

Inclined belt conveyor

These cost-effective inclined conveyors that deliver high transfer capacity are ideal for vertical transport.

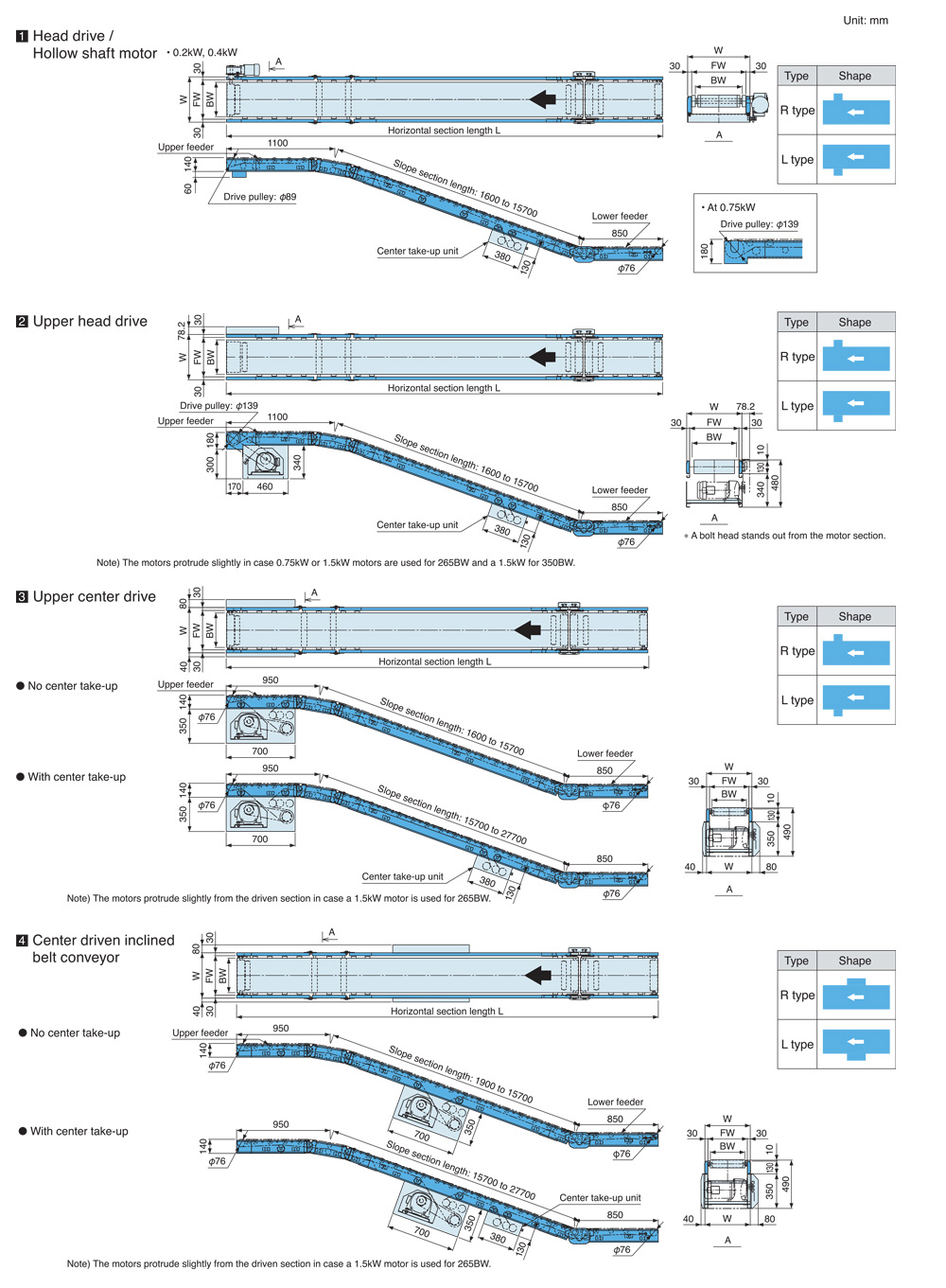

Specifications（① Head drive, Hollow-shaft motor）

*Colored text is semi-standard.

Model	VBK(Head drive with a hollow shaft motor)
BW Belt width (mm)	265	350	450	580	650	750	850	950
FW Inner frame width (mm)	315	400	500	630	700	800	900	1,000
W External frame width (mm)	375	460	560	690	760	860	960	1,060
Carrier roller pitch (mm)	150
L Length (mm)	With center take-up: 3,550 to 17,650 （Upper feeder＋Slope＋Lower feeder)
Minimum height (mm)	250
Frame (mm)	130×30×11.5×t2.3
Belt ^*1	Slope: Plastic belt (2-ply) Belt connections use special lacing.
Speed (50/60 Hz) ^*2	15/18　20/24　30/36 m/min
Motor output ^*3	With brake: 0.2kW, 0.4kW, 0.75kW
Power supply	200V AC (3-phase)

Endless type may be used depending on operating conditions.
Speed figures represent nominal speeds. For more information, please contact Okura's Sales Department.
Premium efficiency motors are adapted for 0.75kW and 1.5kW.

When forward and reverse flows are required, please select a center driven inclined belt conveyor with a motor at a fixed position. Please consult with Okura for details.
We can manufacture systems with non-standard specifications. Please contact Okura for more information.

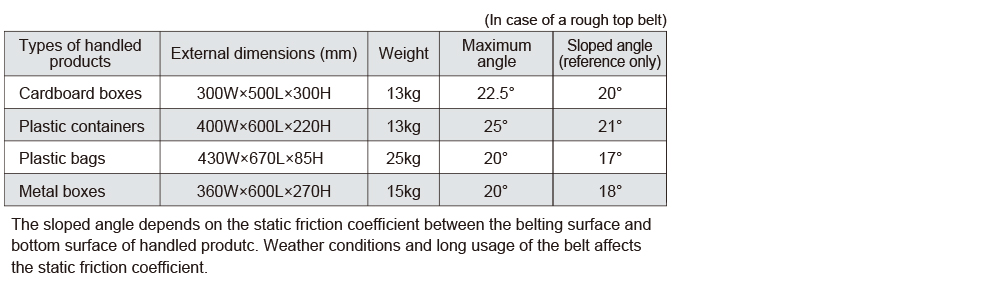

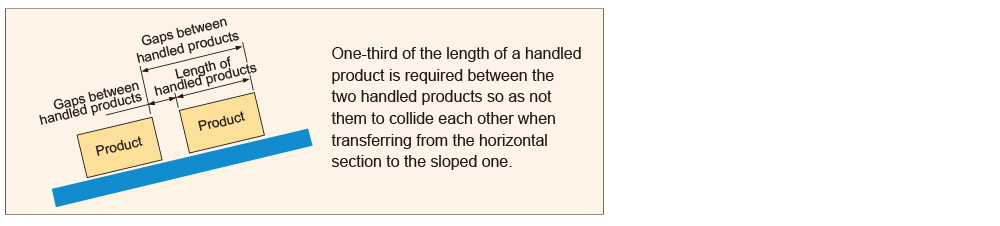

Please consult with Okura if you need the inclined angle bigger than 20ﾟ.

*Colored text is semi-standard.

Model	VBK（Upper head drive）
BW Belt width (mm)	265	350	450	580	650	750	850	950
FW Inner frame width (mm)	315	400	500	630	700	800	900	1,000
W External frame width (mm)	375	460	560	690	760	860	960	1,060
Carrier roller pitch (mm)	150
L Length (mm)	With center take-up: 3,550 to 17,650 （Upper feeder＋Slope＋Lower feeder)
Minimum height (mm)	500
Frame (mm)	130×30×11.5×t2.3
Belt ^*1	Slope: Plastic belt (2-ply) Belt connections use special lacing.
Speed (50/60 Hz) ^*2	15/18　20/24　30/36 m/min
Motor output ^*3	With brake: 0.4kW, 0.75kW, 11.5kW
Power supply	200V AC (3-phase)

Endless type may be used depending on operating conditions.
Speed figures represent nominal speeds. For more information, please contact Okura's Sales Department.
Premium efficiency motors are adapted for 0.75kW and 1.5kW.

When forward and reverse flows are required, please select a center driven inclined belt conveyor with a motor at a fixed position. Please consult with Okura for details.
We can manufacture systems with non-standard specifications. Please contact Okura for more information.
Please consult with Okura if you need the inclined angle bigger than 20ﾟ.

*Colored text is semi-standard.

Model	VBK（Upper center-drive）
BW Belt width (mm)	265	350	450	580	650	750	850	950
FW Inner frame width (mm)	315	400	500	630	700	800	900	1,000
W External frame width (mm)	375	460	560	690	760	860	960	1,060
Carrier roller pitch (mm)	150
L Length (mm)	No center takeup: 3,400 to 17,500 （Upper feeder＋Slope＋Lower feeder)　 With center takeup: 17,500 to 29,500 （Upper feeder＋Slope＋Lower feeder)
Minimum height (mm)	500
Frame (mm)	130×30×11.5×t2.3
Belt ^*1	Slope: Plastic belt (2-ply) Belt connections use special lacing.
Speed (50/60 Hz) ^*2	15/18　20/24　30/36 m/min
Motor output ^*3	With brake: 0.4kW, 0.75kW, 1.5kW
Power supply	200V AC (3-phase)

Endless type may be used depending on operating conditions.
Speed figures represent nominal speeds. For more information, please contact Okura's Sales Department.
Premium efficiency motors are adapted for 0.75kW and 1.5kW.

When forward and reverse flows are required, please select a center driven inclined belt conveyor with a motor at a fixed position. Please consult with Okura for details.
We can manufacture systems with non-standard specifications. Please contact Okura for more information.
Please consult with Okura if you need the inclined angle bigger than 20ﾟ.

*Colored text is semi-standard.

Model	VBK（Center driven inclined belt conveyor）
BW Belt width (mm)	265	350	450	580	650	750	850	950
FW Inner frame width (mm)	315	400	500	630	700	800	900	1,000
W External frame width (mm)	375	460	560	690	760	860	960	1,060
Carrier roller pitch (mm)	150
L Length (mm)	No center takeup: 3,700 to 17,500 （Upper feeder＋Slope＋Lower feeder) With center takeup: 17,500 to 29,500 （Upper feeder＋Slope＋Lower feeder)
Minimum height (mm)	500
Frame (mm)	130×30×11.5×t2.3
Belt ^*1	Slope: Plastic belt (2-ply) Belt connections use special lacing.
Speed (50/60 Hz) ^*2	15/18　20/24　30/36 m/min
Motor output ^*3	With brake: 0.4kW, 0.75kW, 1.5kW
Power supply	200V AC (3-phase)

Endless type may be used depending on operating conditions.
Speed figures represent nominal speeds. For more information, please contact Okura's Sales Department.
Premium efficiency motors are adapted for 0.75kW and 1.5kW.

When forward and reverse flows are required, please select a center driven inclined belt conveyor with a motor at a fixed position. Please consult with Okura for details.
We can manufacture systems with non-standard specifications. Please contact Okura for more information.
Please consult with Okura if you need the inclined angle bigger than 20ﾟ.
