Belt conveyors
UCB
Curved belt conveyor
These belt conveyors can change the orientation of a product in a minimal amount of space.
Specifications
*Colored text is semi-standard.
| Model | UCB(curved belt conveyor) | |||||
|---|---|---|---|---|---|---|
| BW Belt width(mm) | 400 | 500 | 600 | 800 | 1,000 | |
| Curve angle | 90° | |||||
| Minimum height (mm) | 500 | |||||
| Belt | Plastic belt (green, white, black ) Endless-type belt connections | |||||
| Carrier mount | Carrier plate (with 6 integrated carrier rollers) | |||||
| Speed (50/60 Hz) *1 | Constant-speed | 5/6 10/12 15/18 20/24 30/36m/min | ||||
| Variable-speed | 1.6〜5/2〜6 3〜10/4〜12 5〜15/6〜18 7〜20/8〜24 10〜30/12〜36 m/min | |||||
| Paint color | Okura White | |||||
| Motor output | 90W×2 200W×2 | |||||
| Power supply | 100V AC (single-phase), 200V AC (single-phase), 200V AC (3-phase) | |||||
- The speeds listed above are those of the inner radius of the belt.
Speed figures represent nominal speeds. For more information, please contact Okura's Sales Department.
- External covers and transfer rollers are at option.
- We can manufacture systems with non-standard specifications. Please contact Okura for more information.

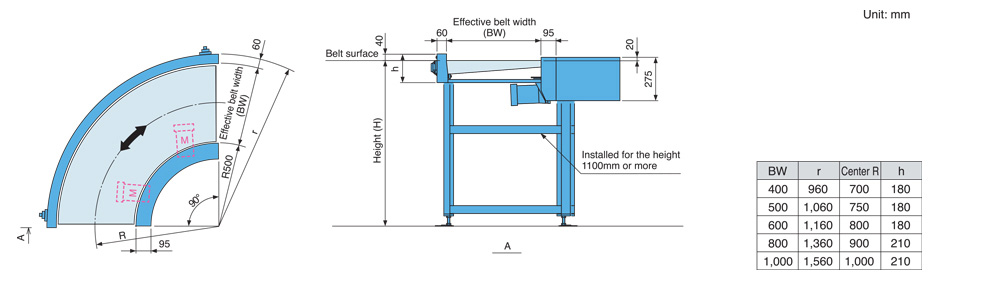

Standard drawings

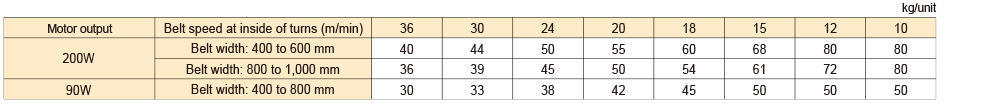

Transfer capacity guidelines

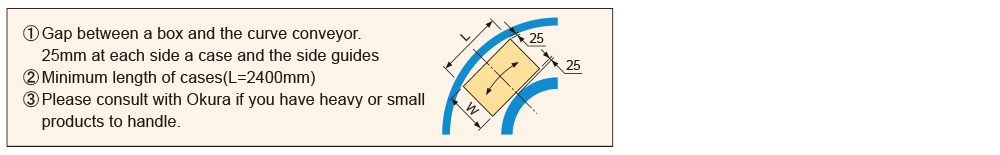

Restrictions on handled products

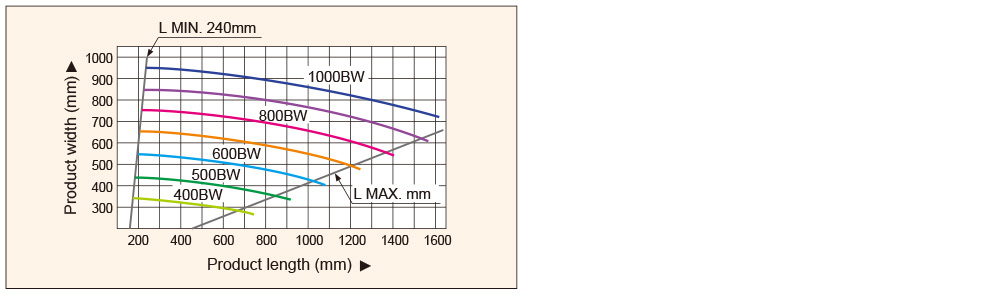

Restrictions on the total demensions of a handled product
