Line-shaft driven roller conveyors
CLY (30ﾟ branch units)
Line-shaft driven roller conveyors
Merge line-shaft driven roller conveyor
Specifications
| Model | CLY (30ﾟ branch units) | ||||
|---|---|---|---|---|---|
| RW Roller width (mm) | 305 | 390 | 490 | 620 | 690 |
| FW Inner frame width(mm) | 315 | 400 | 500 | 630 | 700 |
| W External frame width (mm) | 375 | 460 | 560 | 690 | 760 |
| Roller pitch (mm) | 75 | ||||
| L Length (mm) | 1,950 | ||||
| Minimum height (mm) | 300 | ||||
| Frame (mm) | Stainless steel [ 110 x 30 x t2 with #400 surface finish | ||||
| Carrier rollers | Stainless steel Ø48.6 x t1.2 with grooves and #400 surface finish | ||||
| Belt | Urethane round belt | ||||
- We can manufacture systems with non-standard specifications. Please contact Okura for more information.

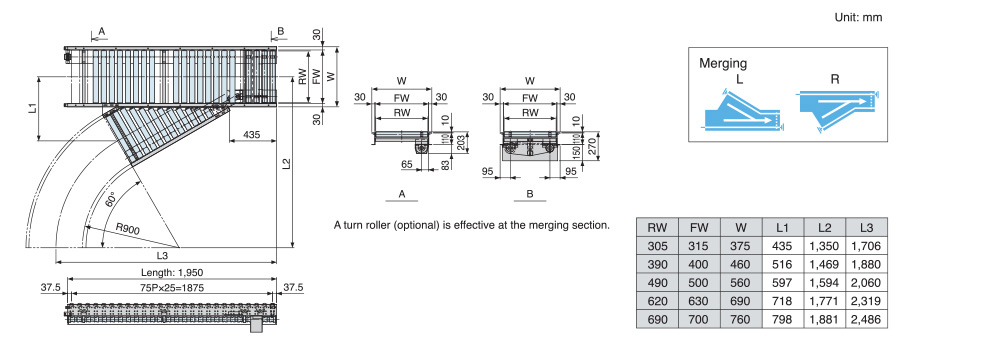

Standard drawings

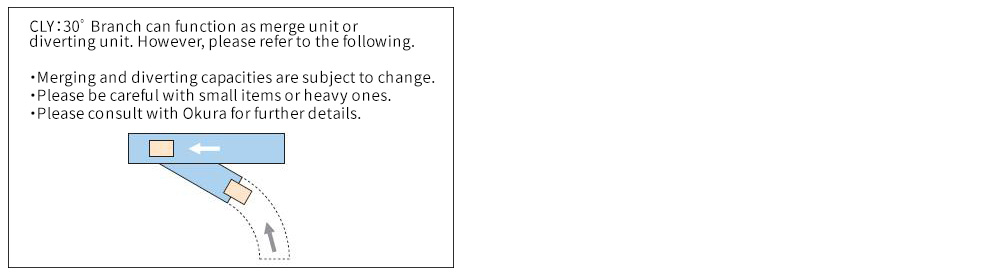

Merging of CLY
