Line-shaft driven roller conveyors
CLM（Motor driven unit）／CLS（Straight unit）
Line-shaft driven roller conveyors
A variety of types, including straight, curved, and branch, are available as units and can be combined and driven with a single motor.
Specifications
| Model | CLM（Motor driven unit）／CLS（Straight unit） | ||||
|---|---|---|---|---|---|
| RW Roller width (mm) | 305 | 390 | 490 | 620 | 690 |
| FW Inner frame width (mm) | 315 | 400 | 500 | 630 | 700 |
| W External frame width (mm) | 375 | 460 | 560 | 690 | 760 |
| Roller pitch (mm) | 100、75 | ||||
| L Length (mm) | Standard length: 1,800 2,400 （CLM：900≦L≦2,400）（CLS：100P…400≦L≦2,400、75P…450≦L≦2,400） |
||||
| Minimum height (mm) | 300 | ||||
| Frame (mm) | Stainless steel [ 110 x 30 x t2 with #400 surface finish | ||||
| Carrier rollers | Stainless steel φ48.6 x t1.2 with grooves and #400 surface finish | ||||
| Belt | Urethane round belt | ||||
| Speed (50/60 Hz) *1 | (CLM)15/18 20/24 30/36 m/min | ||||
| Motor output *2 | (CLM)0.4kW 0.75kW | ||||
| Power supply | (CLM) 200V AC (3-phase) | ||||
- Speed figures represent nominal speeds. For more information, please contact Okura's Sales Department.
- Premium efficiency motors are adapted for 0.75kW and 1.5kW.
- Optional waterproof motor (IP65) is also available.
- We can manufacture systems with non-standard specifications. Please contact Okura for more information.

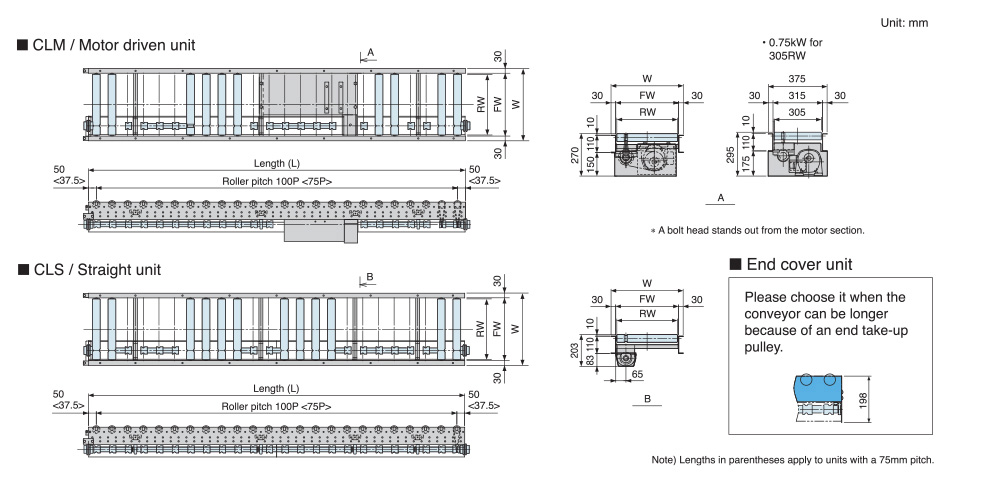

Standard drawings

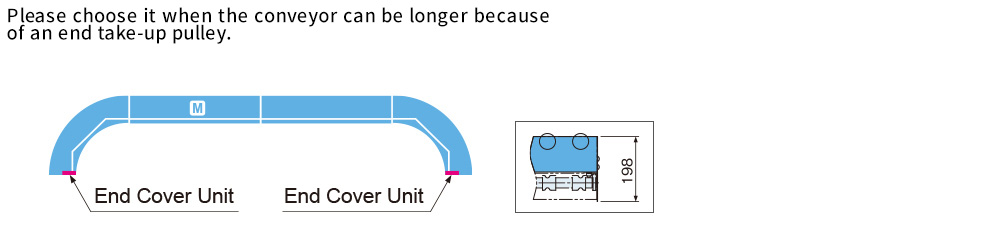

End Cover Unit
