Belt conveyors
CBK
Inclined belt conveyors
These inexpensive inclined conveyors featuring high transfer capacity are ideal for vertical transport.
Specifications
| Model | CBK | ||||
|---|---|---|---|---|---|
| BW Belt width (mm) | 265 | 350 | 450 | 580 | 650 |
| FW Inner frame width(mm) | 315 | 400 | 500 | 630 | 700 |
| W External frame width(mm) | 375 | 460 | 560 | 690 | 760 |
| Carrier roller pitch (mm) | 150 | ||||
| Length (mm) | 3,275〜19,175（The upper feeder＋The slope ＋the lower feeder） | ||||
| Minimum height (mm) | 300 | ||||
| Frame (mm) | Stainless steel [ 110 x 30 x t2 with #400 surface finish | ||||
| Belt | The slope:Rough top belt(2 ply), The lower feeder : plastic belt(2 ply) and endless connection |
||||
| Speed (50/60 Hz) *1 | 15/18 20/24 30/36 m/min | ||||
| Motor output *2 | 0.4 kW, 0.75 kW with brake | ||||
| Power supply | 200V AC (3-phase) | ||||
- Speed figures represent nominal speeds. For more information, please contact Okura's Sales Department.
- Premium efficiency motors are adapted for 0.75kW and 1.5kW.
- Optional waterproof motor (IP65) is also available.
- We can manufacture systems with non-standard specifications. Please contact Okura for more information.
- Please consult with Okura if you need the inclined angle bigger than 20ﾟ.

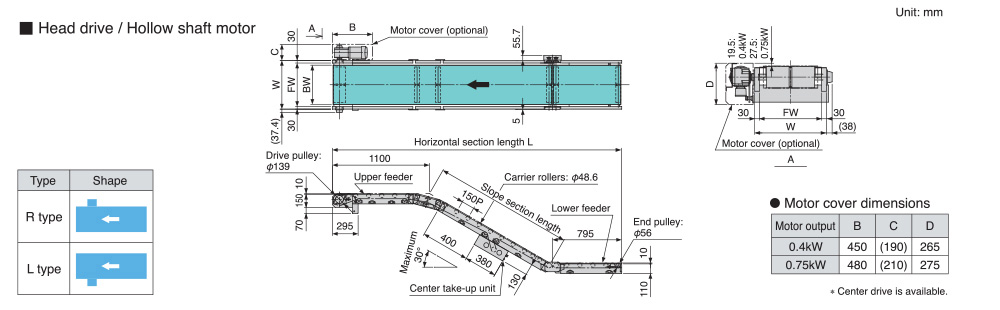

Standard drawings

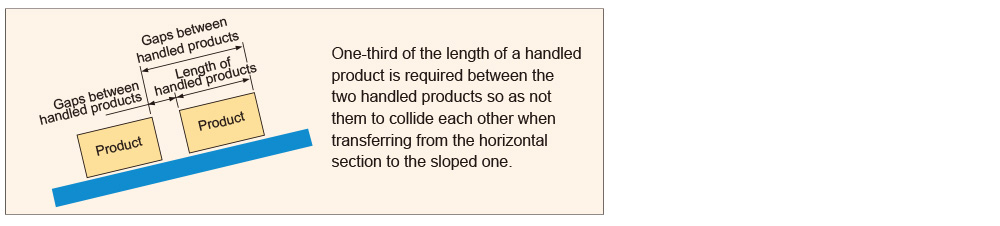

Gaps between handled products

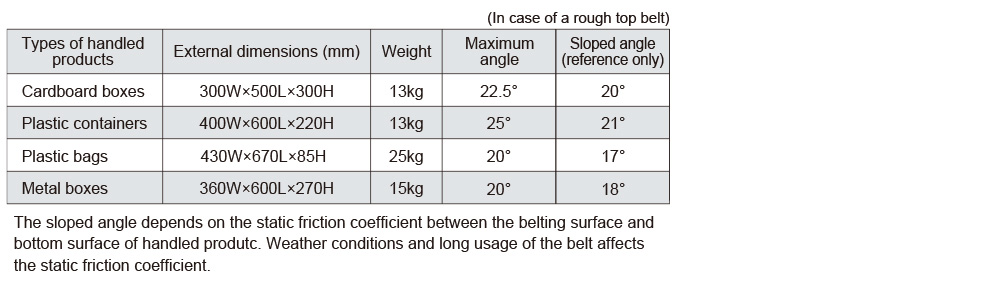

Sloped angles and handled products
