Roller diameter of φ57 with #50x10T sprockets (medium-duty type)

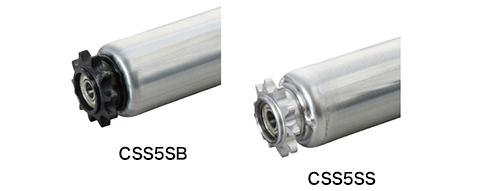

CSS5SB plastic sprockets (with bearings) / CSS5SS steel sprockets (with bearings)
Product information
■Roller×Thickness：φ57×t2.3mm
■Sprocket：#50×10T（Plastic, Steel）
■Shaft dimensions：φ11.8mm round steel
■Roller length that can be produced（effective roller width）：305～690mm
Specifications
|
- |
|
 | Model | CSS（Roller diameter φ57） | |||||
|---|---|---|---|---|---|---|---|
 | Nominal roller width (mm) | 305 | 390 | 490 | 620 | 690 | |
| RW Effective roller width（mm） | 301 | 386 | 486 | 616 | 686 | ||
| FW Inner frame width (mm) | 339 | 424 | 524 | 654 | 724 | ||
| L Shaft length(mm) | 349 | 434 | 534 | 664 | 734 | ||
 | Chain | #50 chain | |||||
 | No. of chain rows | S: 1 chain (single) | |||||
 | Sprockets | B: plastic sprockets (with bearings) S: steel sprockets (with bearings) |
|||||
 | Bearings | D:Bearings for driving | |||||
 | Shaft | N: no shaft A: shaft | |||||

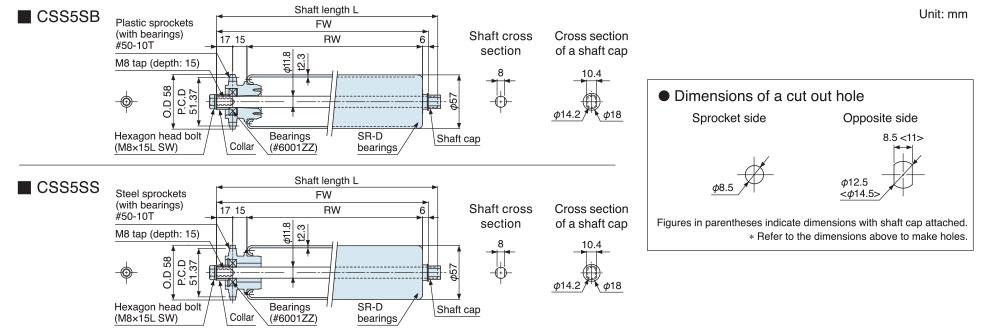

Standard drawings

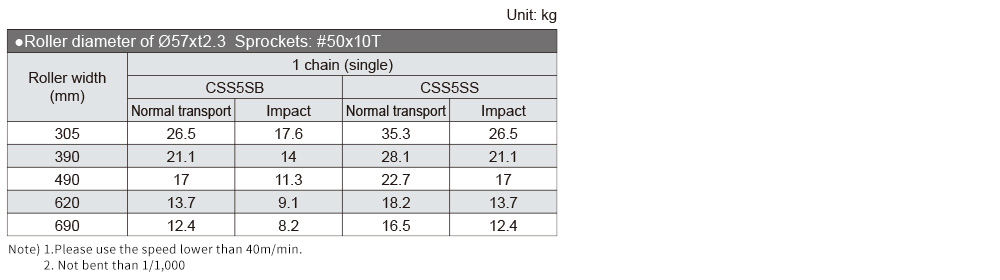

Load weight per roller
