Roller diameter of φ60.5xt3.8 with #50x11T sprockets (heavy-duty type)

■Roller×Thickness：φ60.5×t3.8mm
■Sprocket：#50×11T（Steel）
■Shaft dimensions：φ15mm round steel
■Roller length that can be produced（effective roller width）：305～1,190mm

Example models
■Straight rollers

CMM 5 S S 790 C

-

N

*Colored text is semi-standard.

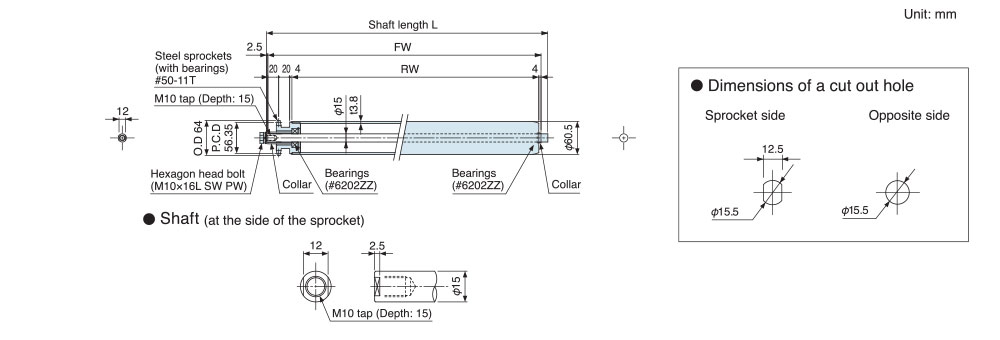

	Model		CMM（Roller diameter φ60.5）
	Nominal roller width (mm)		305	390	490	620	690	790	890	990	1,090	1,190
RW Effective roller width（mm）			267	352	452	582	652	752	852	952	1,052	1,152
FW Inner frame width (mm)			315	400	500	630	700	800	900	1,000	1,100	1,200
L Shaft length(mm)			330	415	515	645	715	815	915	1,015	1,115	1,215
	Chain		#50 chain
	No. of chain rows		S: 1 chain (single)
	Sprockets		S: steel sprockets (with bearings)
	Bearings		C: Heavy duty bearings
	Shaft		N: no shaft　A: shaft
