Steel-made

*Colored text is semi-standard.

Model	OSH
Drive system	Forced drive
Transfer weight	75P: 200 kg/m, 100P: 150 kg/m, max. 1,000 kg/unit

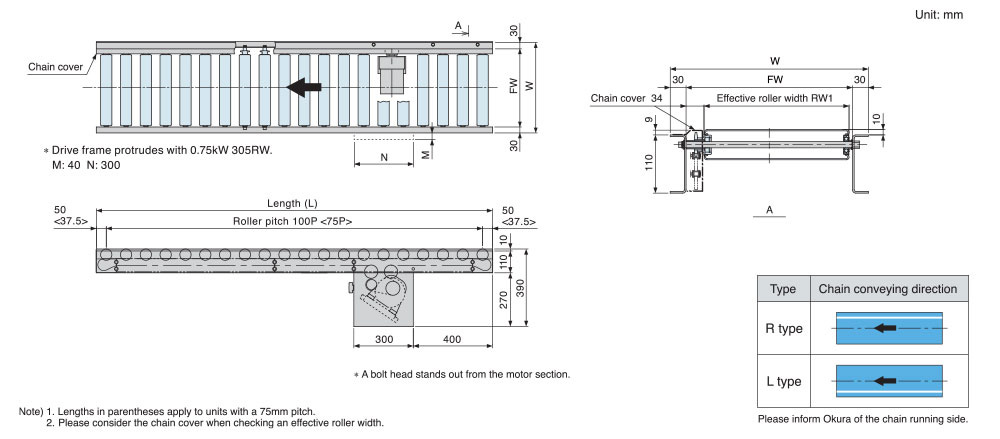

RW Roller width (mm)	305	390	490	620	690	790	890	990
RW1 Effective roller width (mm)	274	359	459	589	659	759	859	959
FW Inner frame width (mm)	315	400	500	630	700	800	900	1,000
W External frame width (mm)	375	460	560	690	760	860	960	1,060
Roller pitch (mm)	100、75
L Length (mm)	1,000 (75 pitch: 1,050) to 12,000
Minimum height (mm)	400
Frame (mm)	110×30×t3.2
Carrier rollers	φ57　Steel sprocket（#40×10T）
Chain	#40 roller chain, #40 low-noise chain
Speed (50/60 Hz) *1	0.2kW：5/6　10/12　15/18　20/24　30/36 m/min 0.4kW：10/12　15/18　20/24　30/36 m/min 0.75kW：30/36 m/min
Motor output *2	0.2kW　0.4kW　0.75kW
Power supply	200V AC (3-phase)

1. Speed figures represent nominal speeds. For more information, please contact Okura's Sales Department.
2. Premium efficiency motors are adapted for 0.75kW.

• We can manufacture systems with non-standard specifications. Please contact Okura for more information.
