Stainless-made
CCC（R900・90ﾟ curve）/CCY（30ﾟ branch）
Chain-driven straight type（Stainless-made）
These conveyors use the chains to drive the rollers and are available with a curve radius of R900.
Specifications
*Colored text is semi-standard.
| Model | CCC（R900・90ﾟ curve）/CCY（30ﾟ branch） | ||||
|---|---|---|---|---|---|
| Inner radius R | 900 | ||||
| RW Roller width (mm) | 305 | 390 | 490 | 620 | 690 |
| RW1 Effective roller width (mm) | 274 | 359 | 459 | 589 | 659 |
| FW Inner frame width (mm) | 315 | 400 | 500 | 630 | 700 |
| W External frame width (mm) | 375 | 460 | 560 | 690 | 760 |
| Roller pitch (mm) | Equivalent to 100, Equivalent to 75 | ||||
| Curve angle | 90° 30°branch | ||||
| Minimum height (mm) | 400 | ||||
| Frame (mm) |  Stainless steel [ 110 x 30 x t2 with #400 surface finish
|
||||
| Carrier rollers | Inner radius φ42.7 Stainless tapered rollers Surface finished with #400 With a plastic sprocket (#40×8T) With a stainlesssteel sprocket | ||||
| Chain | #40 roller chain (rust-resistant finish) | ||||
| Speed (50/60 Hz) *1 | 0.2kW：15/18 20/24 m/min ／ 0.4kW：15/18 20/24 30/36 m/min | ||||
| Motor output | 0.2kW 0.4kW | ||||
| Power supply | 200V AC (3-phase) | ||||
- Speed figures represent nominal speeds. For more information, please contact Okura's Sales Department.
- Optional waterproof motor (IP65) is also available.
- We can manufacture systems with non-standard specifications. Please contact Okura for more information.

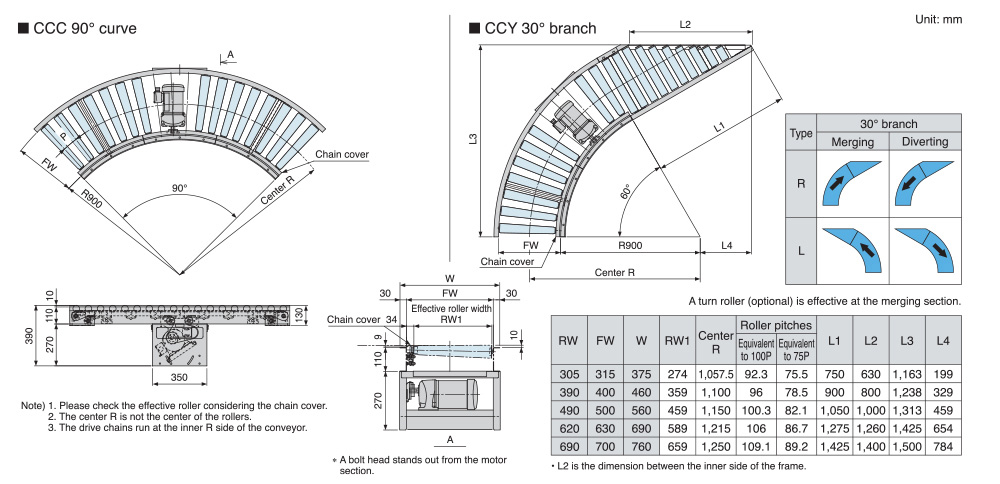

Standard drawings

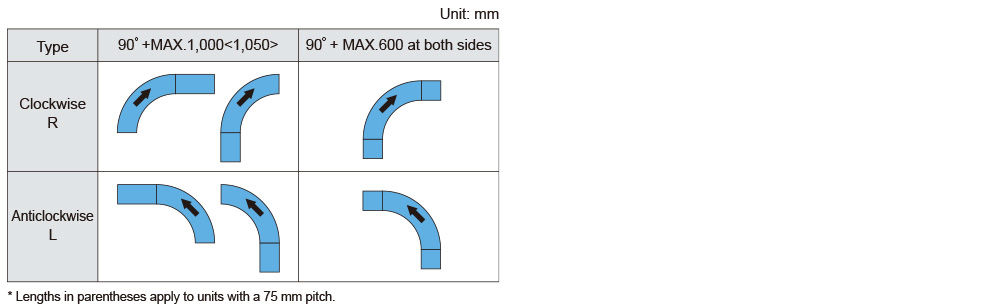

CCC(Curve + Straight) The maximum length of the straight section

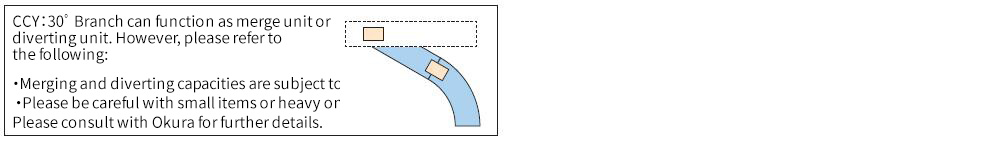

CCY merging/diverting
